Rotary Joints for Steam, QQ Series
Rotary Joint, is also called rotary union or swivel joint.
The QQ series steam rotary joints adopt convex-surface seal technology, multi-spring seal structure and OPQ process techniques, and use imported graphite ring and O-shaped ring, with high reliability and high quality.
1. Concave-surface seal
2. Standard graphite or antimony filled graphite seal material
3. Oilless dual-bearing support
4. Maximum support spacing
5. Prolonged service life and high reliability
6. Easy to replace
7. Rotary type or fixed type siphonTechnical Parameters of Steam Rotary Joints
Max. pressure: 32Bar
Max. temperature: 280℃
Max. speed: 50-250RPM
Media: Steam, heat transfer
Size: 3/4″——8″SIZE TABLE
MODEL TABLE

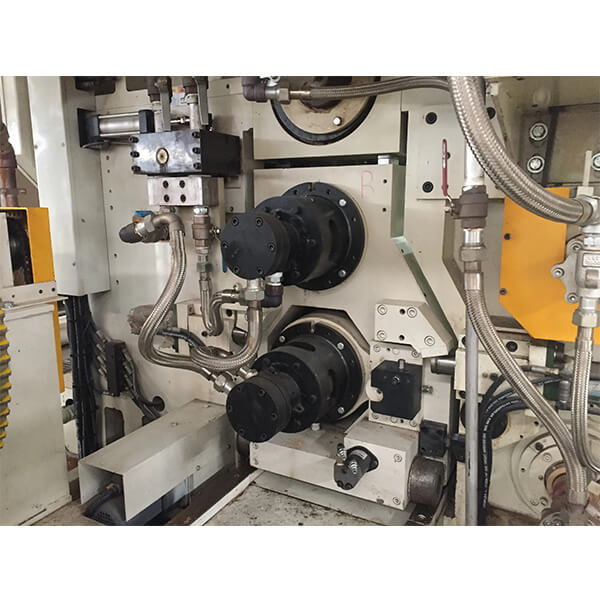

The installation
