Rotary Joints for Solar Energy Industry, SGJ Series
Rotary Joint, is also called rotary union or swivel joint.

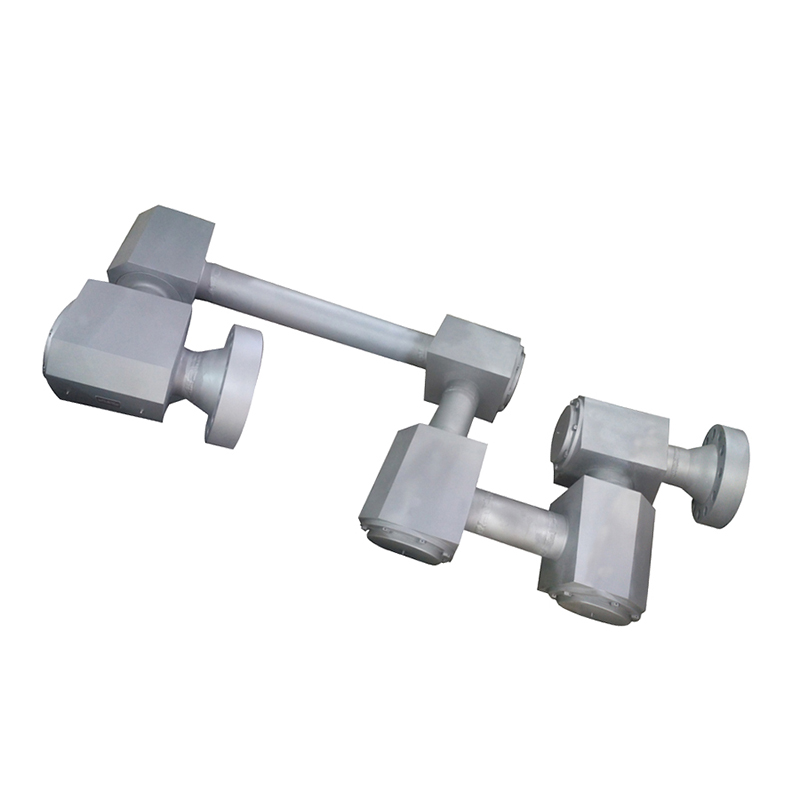

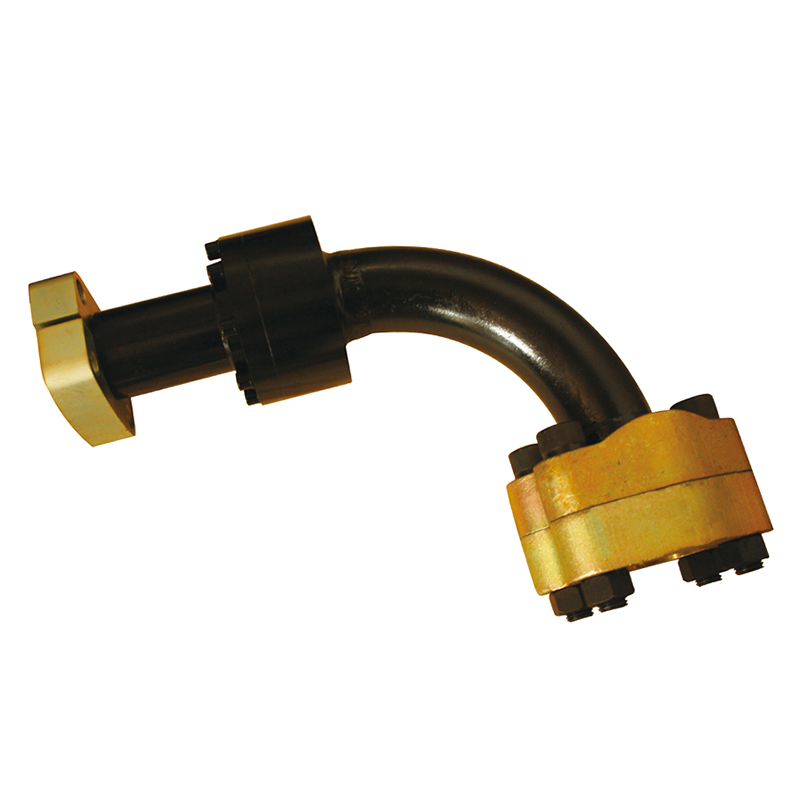

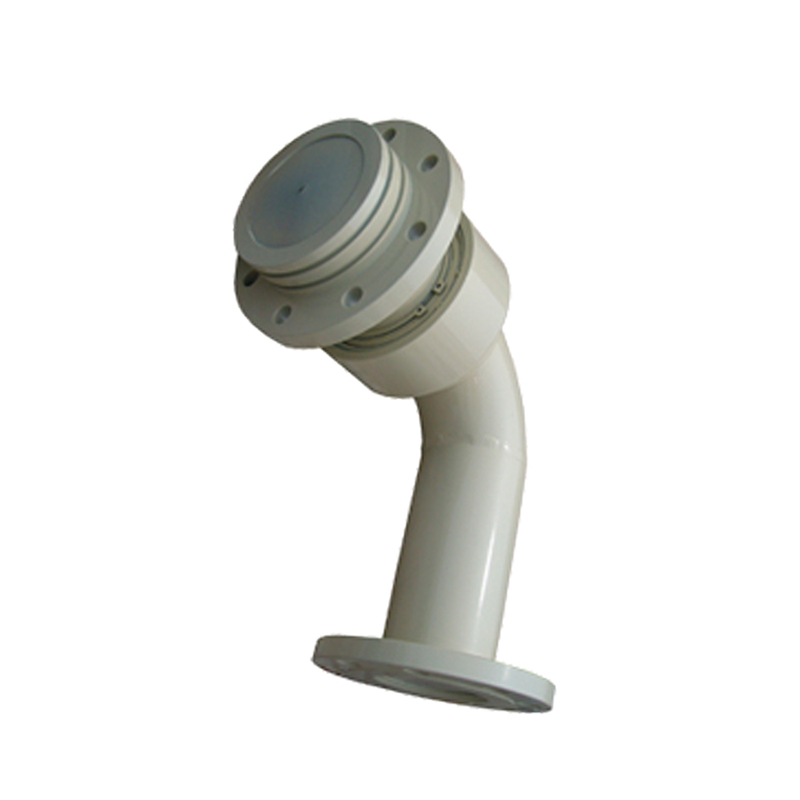

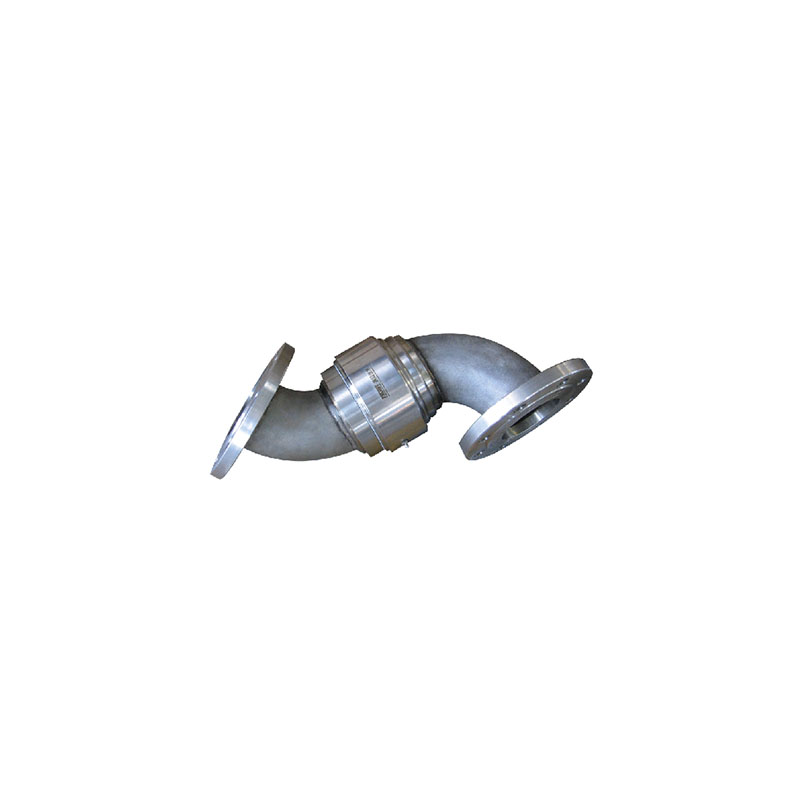

The SGJ-F rotary joint can work with elbow head and corner parts to form rotary pipelines with different structures. By using high-pressure and abrasion resistant sealing ring and high-precision support structure, the rotary unions for molten salts feature high efficiency, low leakage and corrosion resistance. According to the properties of media, various raw materials are available.
Technical Parameters of Molten Salt Rotary Joints
Diameter: 10A-350A
Max. temperature: 180℃
Max. pressure: 21MPa
Media: Gas, oil, water, ethylene glycol
SIZE TABLE
The installation
